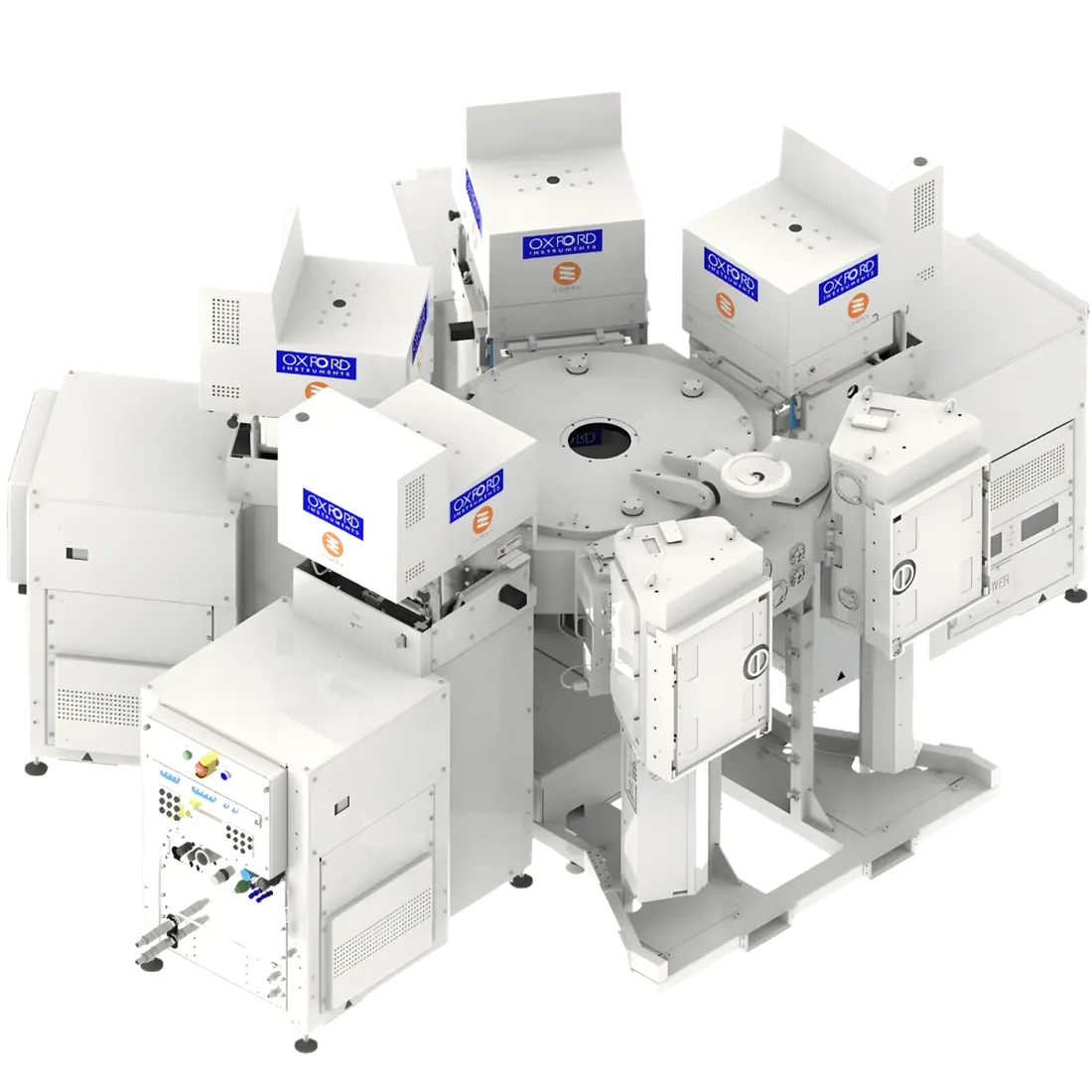

PlasmaPro 100 Cobra GaAs VCSEL
Brand: Oxford Instruments | Category: Nanotechnology
A PlasmaPro 100 Cobra configuration set up for volume VCSEL manufacture. The process gives a clean mesa sidewall finish, controlled profile angle for critical dimension control and very low footing, working with either photoresist or a hard mask.
Technical Specifications
| Parameter | Value |
|---|---|
| System uptime | over 90% |
| Specification | Precise control of profile angle for critical dimension control |
| Specification | Etch process supported with photoresist and hard mask |
| Specification | Controlled by PTIQ software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
