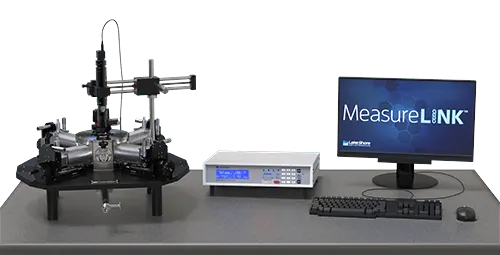

PS-100 Tabletop Probe Station
Brand: Lake Shore | Category: Nanotechnology
The PS-100 is a tabletop cryogenic probe station for electrical measurements on samples held at a controlled temperature. A 2-stage flow cryostat cooled by liquid helium or liquid nitrogen gives a base temperature of 4.3 K. It ships as a standard, fully specified configuration for device and materials testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Base temperature | 4.3 K with 2 probe arms installed, control range 4.4 K to 475 K |
| Base temperature | 3.2 K with the PS-LT option, control range 3.3 K to 475 K |
| High temperature range | 20 K to 675 K with the PS-HTSTAGE option |
| Cryostat | 2-stage flow cryostat (sample plus radiation shield), cooled by liquid helium (LHe) or liquid nitrogen (LN2) |
| Magnetic field | ring magnet kit |
| Pump down time | 15 min to reach <1 x 10^-3 Torr |
