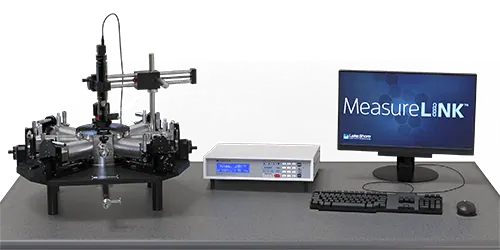

TTPX Cryogenic Probe Station
Brand: Lake Shore | Category: Nanotechnology
The TTPX is an entry-level cryogenic probe station for non-destructive electrical measurements on devices and materials. A 2-stage flow cryostat cooled by liquid helium or liquid nitrogen takes the sample stage to a base temperature of 4.3 K, with control up to 475 K. It accepts up to six probe arms.
Technical Specifications
| Parameter | Value |
|---|---|
| Base temperature | 4.3 K with 2 probe arms installed, control range 4.4 K to 475 K |
| Base temperature | 3.2 K with the PS-LT option, control range 3.3 K to 475 K |
| High temperature range | 20 K to 675 K with the PS-HTSTAGE option |
| Cryostat | 2-stage flow cryostat (sample plus radiation shield), cooled by liquid helium (LHe) or liquid nitrogen (LN2) |
| Magnetic field | ring magnet kit |
| Vacuum | <5 x 10^-4 Torr at room temperature, <1 x 10^-5 Torr at helium base temperature |
