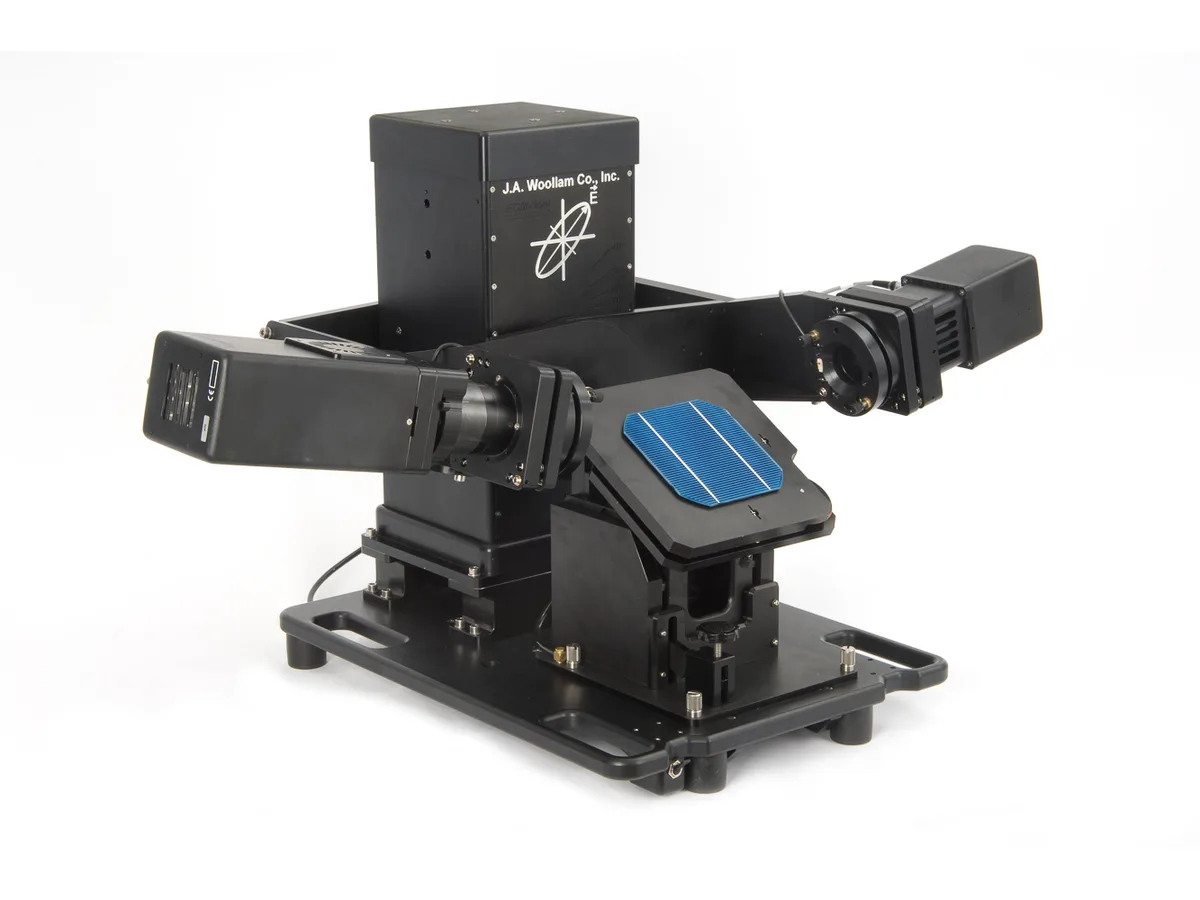

T-Solar Ellipsometer
Brand: J.A. Woollam | Category: Nanotechnology
The T-Solar is a photovoltaic measurement system designed specifically for textured samples. It is based on the established M-2000 rotating compensator spectroscopic ellipsometer and measures hundreds of wavelengths across the UV, visible and near infra-red. To cope with rough, textured surfaces that greatly reduce the reflected signal, it pairs a special high-intensity lamp source with an Intensity-Optimizer that adjusts the light source automatically to the ideal range for the sample. An adjustable tilt-rotation stage aligns the pyramid structures of alkaline-etched monocrystalline surfaces, which makes the system well suited to characterising AR coatings on etched silicon.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Material/process, substrate dimensions and required film or synthesis result
- Temperature, vacuum/atmosphere, source and process-control configuration
- Utilities, exhaust, consumables, installation and process training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about J.A. Woollam equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
