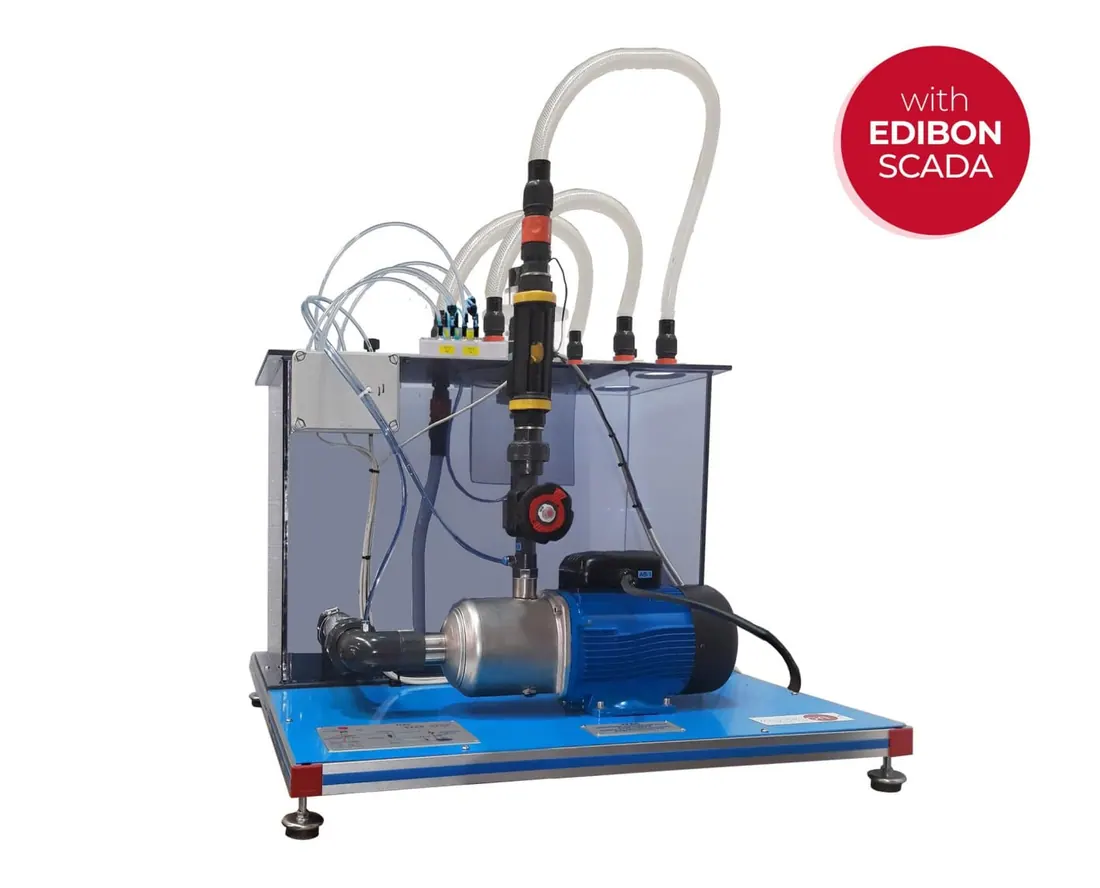

TFAC: Computer Controlled Axial Flow Turbine
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TFAC is a computer controlled axial flow turbine test set. Head, flow, speed and brake torque are logged so power output, efficiency and the characteristic curves of the machine can be obtained across its operating range.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 800 x 900 x 800 mm approx |
| Weight | 100 kg approx |
| Throat inlet diameter | 2 mm. Throat outlet diameter: 2 mm |
| Maximum pressure | 7 bar |
| Maximum water flow | 160 l/min |
| Transparent water tank, capacity | 120 l approx |
