Ultim Max TLE
Brand: Oxford Instruments | Category: Nanotechnology

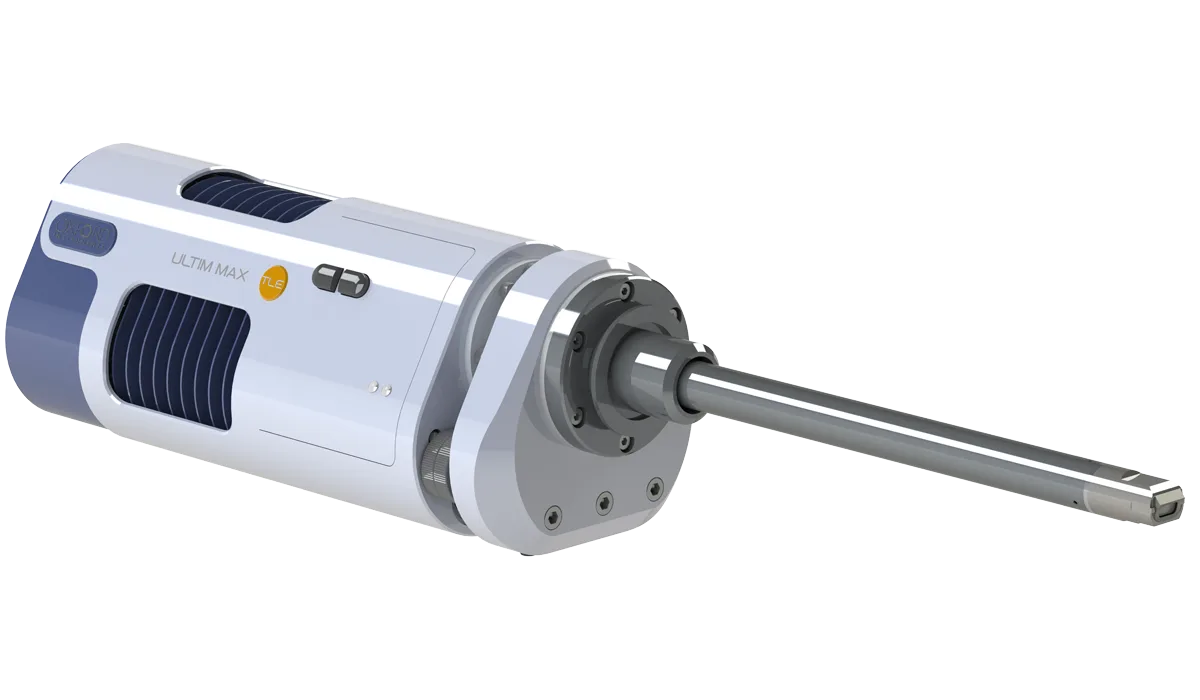

Ultim Max TLE is the Oxford Instruments flagship silicon drift detector for the TEM, optimised for elemental characterisation at the atomic scale with maximum count rates at the smallest probe sizes. Its performance comes from an optimised sensor shape, a 100 mm2 sensor, windowless construction, an optimised mechanical design and Extreme electronics. The detector is also aimed at biological sample analysis, where it collects data quickly and accurately on beam sensitive samples by maximising the count rate of low energy X-rays. Extreme electronics combined with the X4 pulse processor allow in situ EDS mapping and quantification at elevated temperatures.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Sensor active area | 100 mm² |
| Published solid-angle range | 0.5–1.1 sr; microscope geometry dependent |
| Detector window | Windowless |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
